MEASURING RANGE
Various
FORCE RANGE
0-20 N
PARAMETERS
2
APPLICATION
Softgel Capsule
FOR MORE THAN THREE DECADES, THE BAREISS GELOMAT HAS BEEN THE TRUSTED CHOICE FOR SOFTGEL CAPSULE HARDNESS TESTING. ITS PROVEN ACCURACY AND RELIABILITY HAVE MADE IT THE BENCHMARK INSTRUMENT FOR MANY OF THE WORLD’S LEADING SOFTGEL CAPSULE MANUFACTURERS.
Why Softgel Capsule Hardness Testing Matters
Softgel capsules may feel soft and elastic but ensuring their quality requires precise measurement and careful control. The right hardness is essential for maintaining capsule integrity throughout manufacturing, packaging, transportation and storage.
Born from close collaboration with Merck, the Bareiss Gelomat was developed specifically for these delicate dosage forms, the Gelomat combines precise force measurement, controlled testing conditions, and robust technology to deliver accurate and repeatable results—because even soft capsules need a little toughness behind the scenes.
“BAREISS IS BACKED BY THE WORLD’S MOST RENOWNED
PHARMACEUTICAL COMPANIES“
EXPERIENCE YOURSELF
Request a Bareiss demo unit delivered to your door. There is no better way to choose your perfect testing instrument than by experiencing it before buying.
SPECIFICATIONS
Force range
0-2 N or 0-20 N
Displacement
0.1-9.9 mm
Interfaces
USB, RS 232
Power supply
100-240 VAC,50/60 Hz
GELOMAT FAQS
Here we answer the most common questions about the Bareiss Gelomat. If you can’t find the answer to your question, please see the full list by clicking the link below.
What is the load range of the Gelomat?
Gelomat is available with two measurement ranges: 0–2 N and 0–20 N providing accurate testing for a wide variety of soft and flexible materials, including gelatin capsules and gels.
What types of samples can the Gelomat test?
The Gelomat is designed to test the strength and hardness of gelatin capsules, gel-based culture media, gelatinous substances, and other flexible cellular plastics. Its modular measuring system allows the instrument to be configured for different sample types and applications.
Can the Gelomat test gelatin capsules and gels?

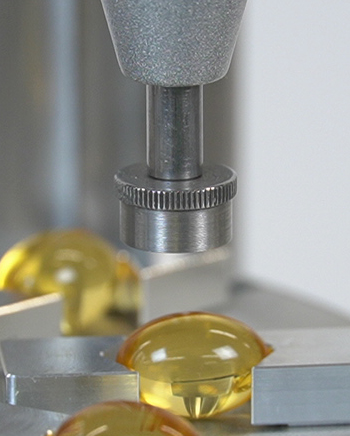

Yes. The Gelomat is specifically designed for testing gelatin capsules, gels, and gel-like culture media. It comes standard with a 10 mm probe for capsule testing and can be equipped with an optional measuring unit for gel testing applications.
How are samples positioned during testing?

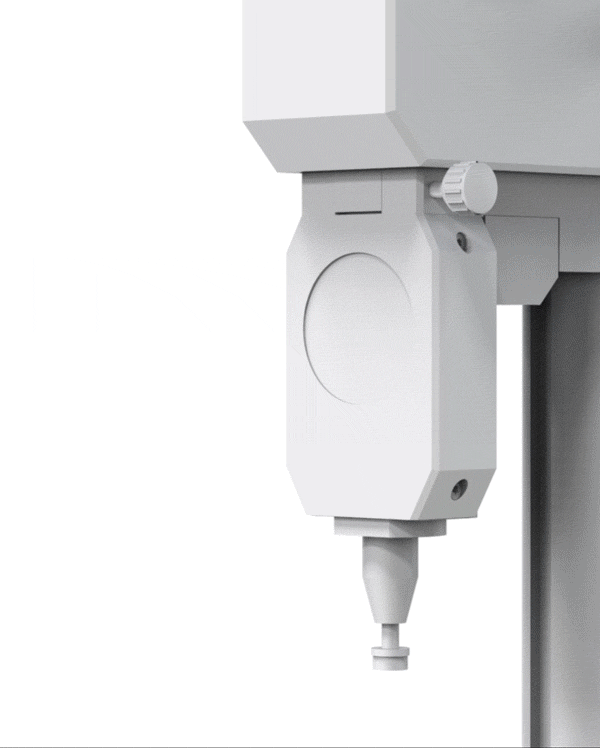

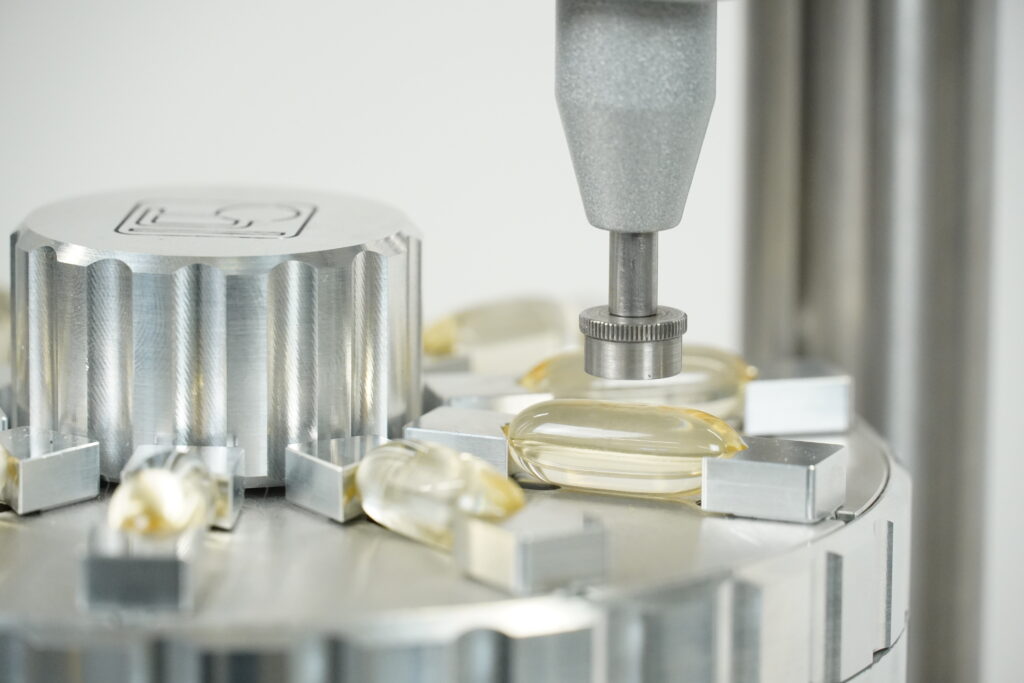

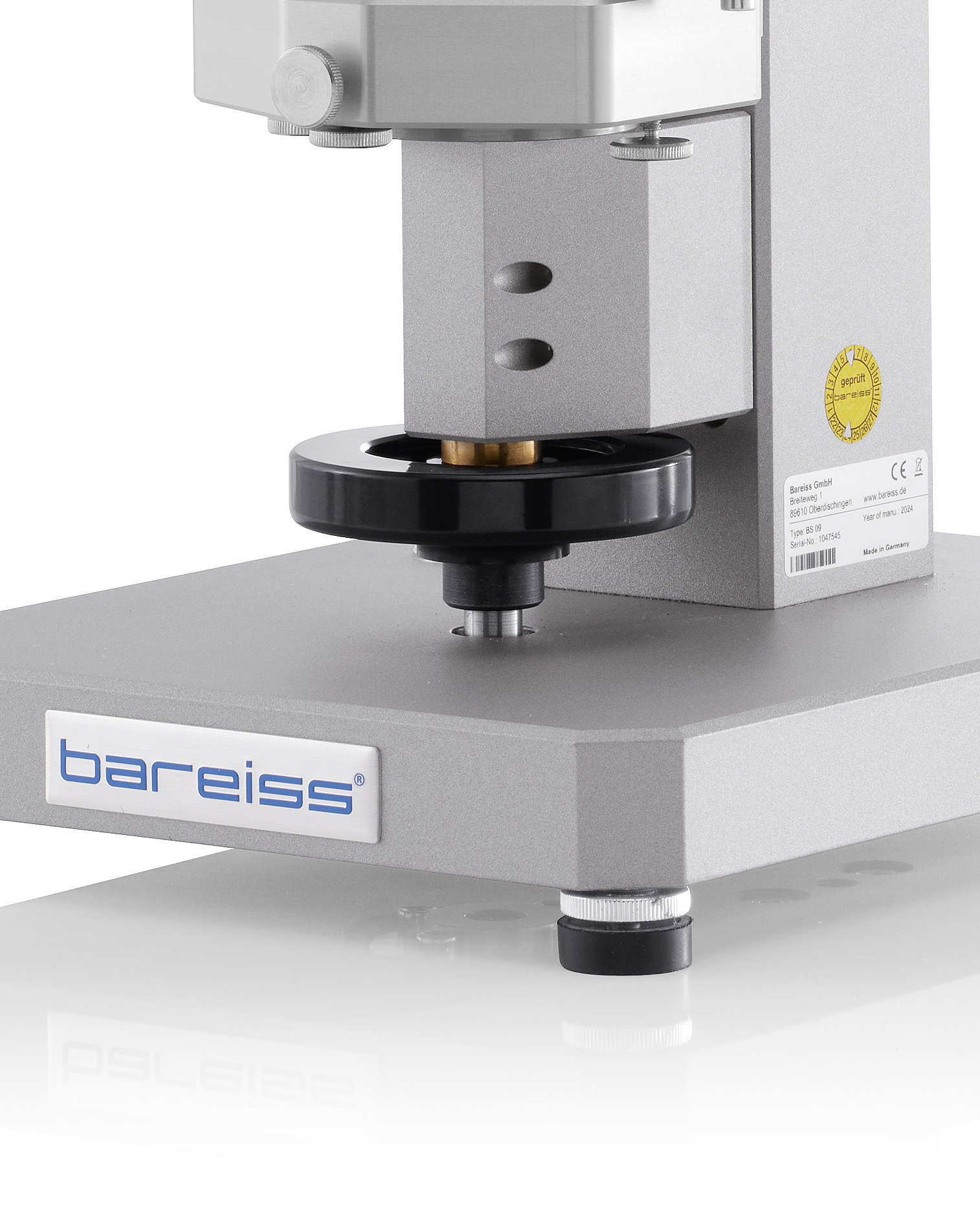

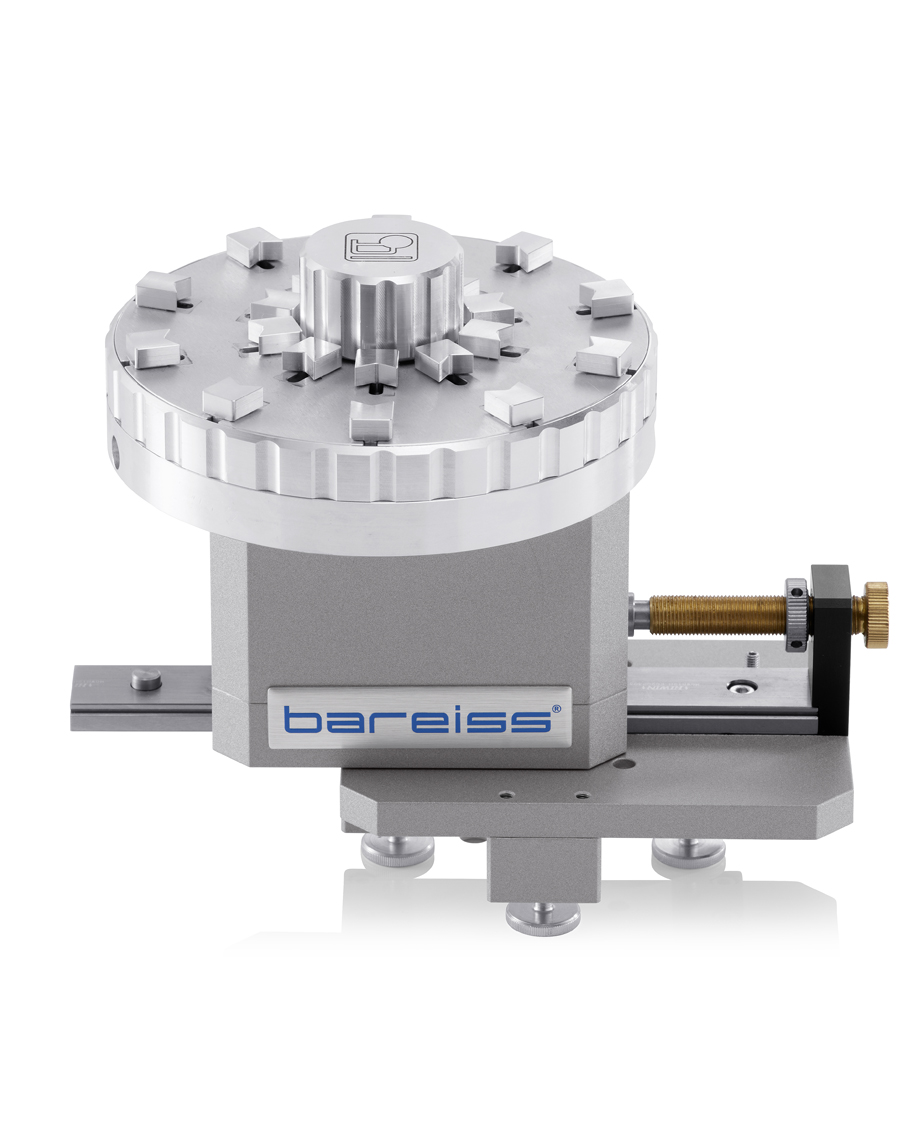

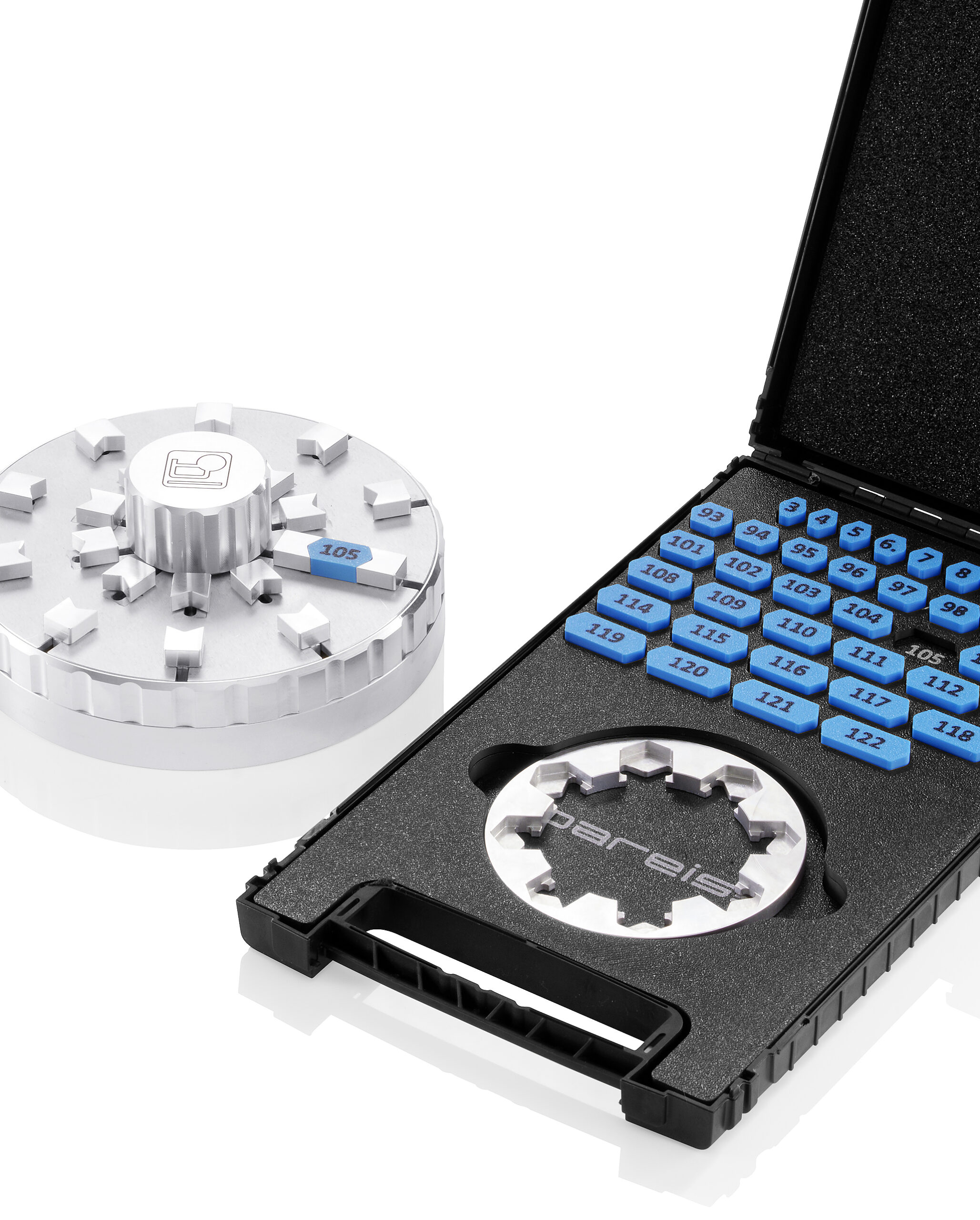

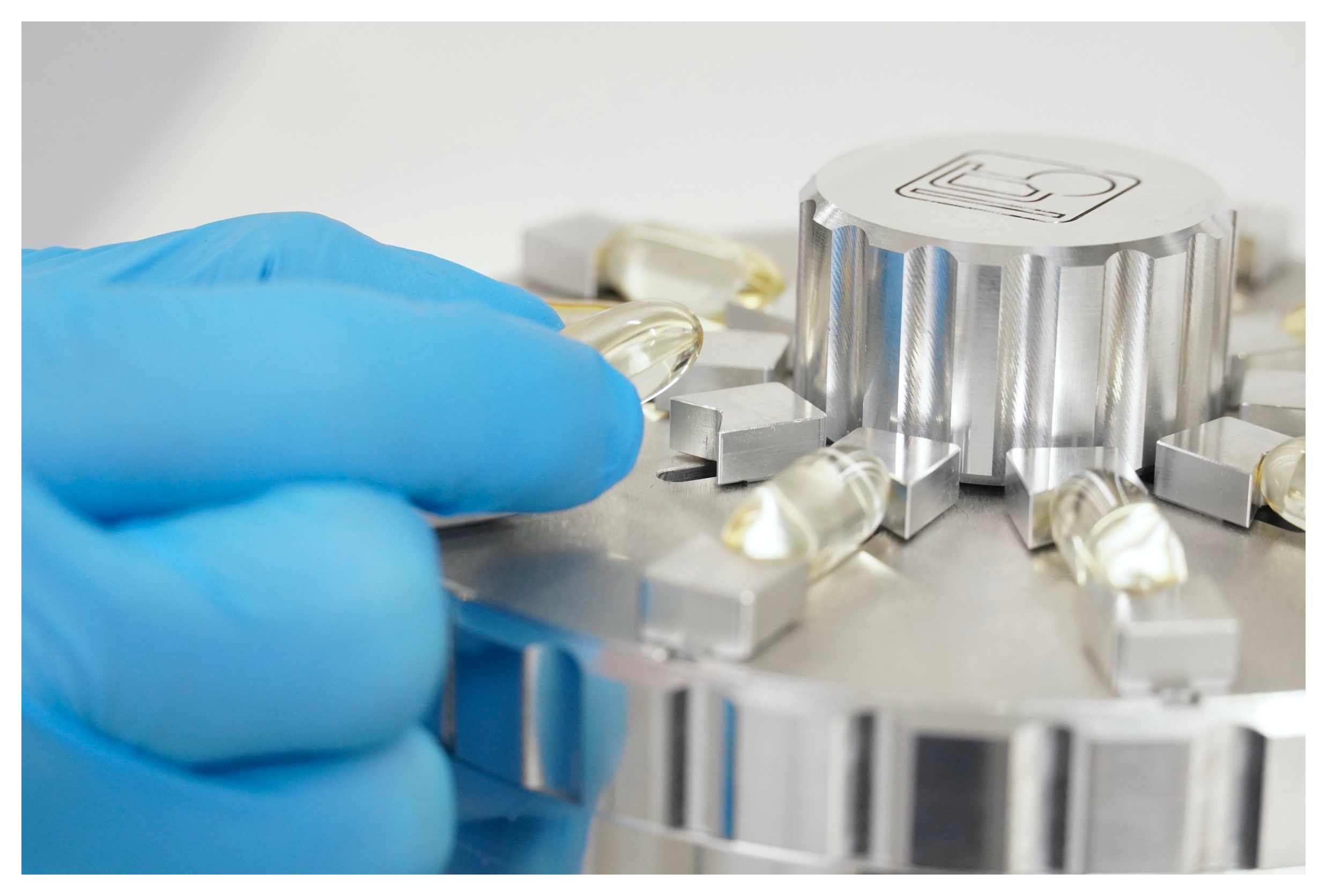

The Gelomat features a movable measuring table for convenient sample loading and positioning. Individual gelatin capsules can be precisely aligned using the Centrofix specimen holder, while the optional Rotofix holder automatically positions multiple capsules for efficient batch testing.
Does the Gelomat support data export?
Yes. All measured values and test information are displayed on the illuminated screen and can be conveniently exported via the integrated USB interface for further analysis and documentation.
Is calibration documentation available?
Yes. The Gelomat can be supplied with an optional DAkkS calibration certificate, issued in accordance with DIN EN ISO/IEC 17025. Additionally, a 3Q qualification report is available to support instrument qualification and validation requirements.
