MEASURING RANGE
1-36 mm
FORCE RANGE
3-500 N
PARAMETERS
5
APPLICATION
Tablet

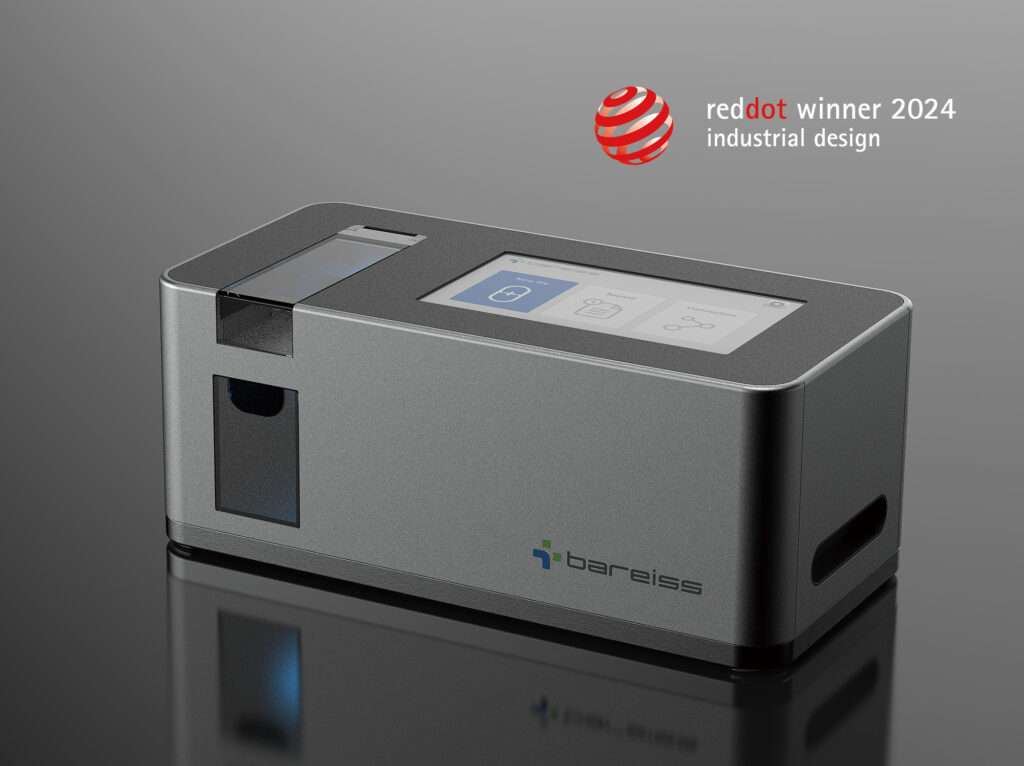

BUILT FOR RELIABILITY, SPEED AND EASE OF USE, THE THT500 DELIVERS HIGHLY REPRODUCIBLE TABLET HARDNESS MEASUREMENTS WHILE KEEPING OPERATION SIMPLE AND INTUITIVE.
TESTING MADE EASY
The entire design of the THT500 revolves around simplicity in everyday pharmaceutical testing.
From the intuitive workflow to the streamlined operation, the system is designed to make tablet hardness testing efficient, reliable, and easy to integrate into daily laboratory routines.Whether in development, routine QC, or production environments, the THT500 delivers fast and reproducible measurements with minimal operator effort.
No complicated workflows. No unnecessary complexity.
Just clear results, reliable performance, and confidence in every measurement.
“BAREISS IS BACKED BY THE WORLD’S MOST RENOWNED
PHARMACEUTICAL COMPANIES“
EXPERIENCE YOURSELF

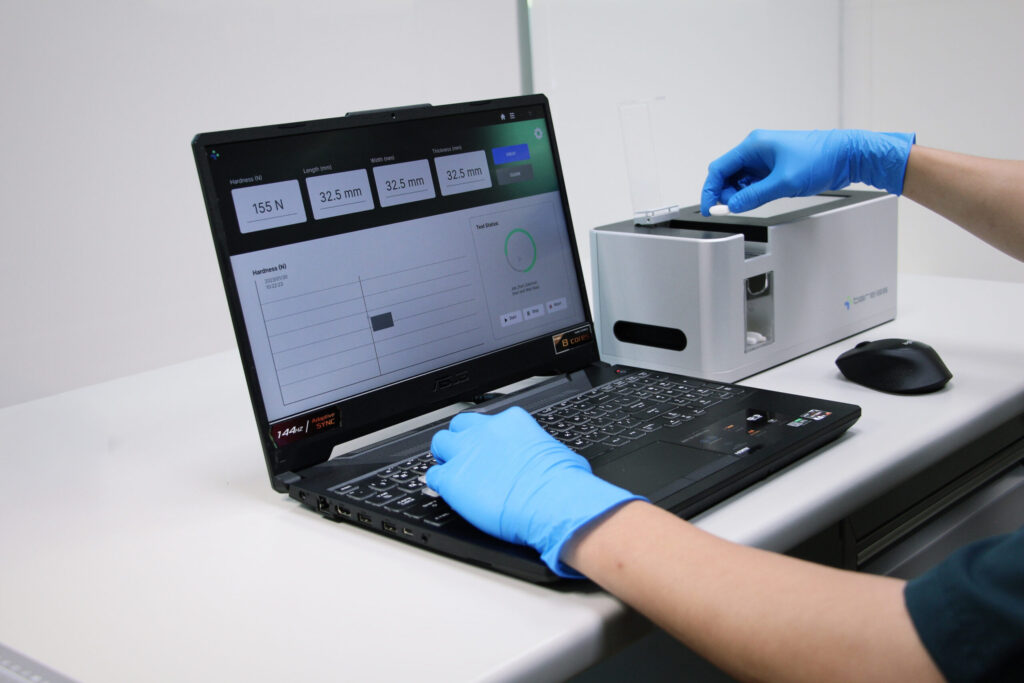

Request a Bareiss demo unit delivered to your door. There is no better way to choose your perfect testing instrument than by experiencing it before buying.

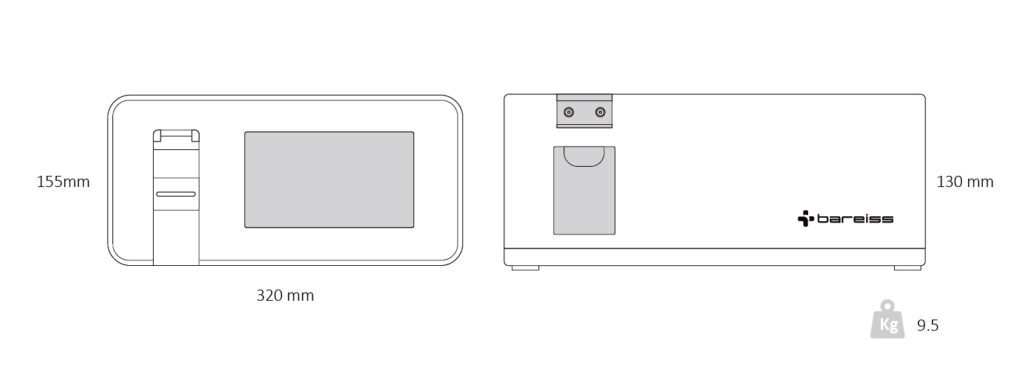

SPECIFICATIONS
Measuring range (specimen size)
Measuring range 1-36 mm
Resolution 0.01 mm
Units of measurement mm/inch
Force measurement
Measuring range 3-500 N
Accuracy +/- 1N
Units of measurement N (Newton)/kgf (Kilogram force) / lbf (Pound force)
Weight measurement
Units of measurement mg (Milligram)/g (Gram) /kp (Kilopond) lb (Pound)
Measuring principles
Constant force 10-200 N/sec
Constant Speed 0.01-3 mm/sec
Memory
160 projects with up to 99 samples per project
Interfaces
2 x USB 2.0, 1 x LAN, 1 x RS232
Power supply
100-240 V, 50-60 Hz, 90 W
THT500 FAQS
Here we answer the most common questions about the Bareiss THT500. If you can’t find the answer to your question, please see the full list by clicking the link below.
What is the load range of the THT500?
The THT500 offers a hardness (breaking force) measuring range of 3–500 N, making it suitable for testing a wide variety of pharmaceutical tablets. The system provides an accuracy of ±1 N and supports multiple force units including Newton (N), kilogram-force (kgf), and pound-force (lbf).
Does my precision balance work with the THT500?

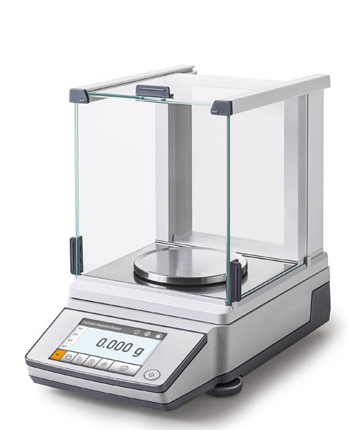

The THT500 supports weight measurement through an external balance connected via its RS232 interface. It is compatible with selected models from Shimadzu and Mettler Toledo, including the ATY, ATX, ME, and MS series balances listed in the datasheet. If your balance model is not listed, please contact us to confirm compatibility.
Can I finance this purchase?
Financing options vary by region and distributor. Please contact our sales team or your local representative to discuss available financing, leasing, or payment plans for the THT500.
How is the THT500 compliant with 21 CFR Part 11?

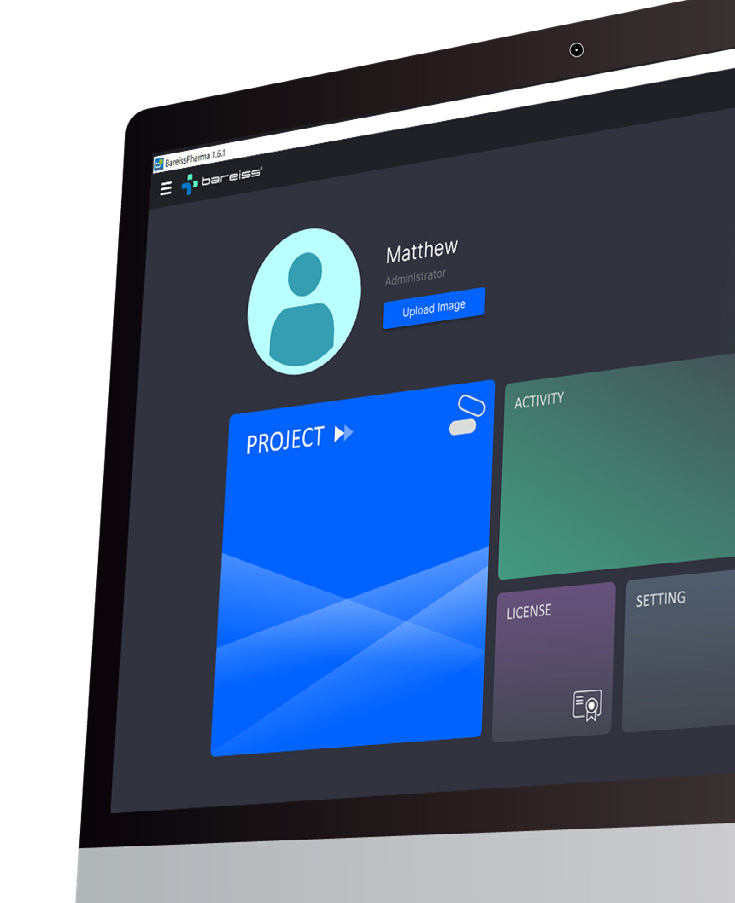

The THT500 can be integrated with CeLeste™ software, which is designed to comply with 21 CFR Part 11 requirements for electronic records and electronic signatures. Key features include audit trails, electronic signatures, user access controls, password security, version control, database backup and restore, and IQ/OQ/PQ software validation support.
Does the THT500 come with the constant force testing mode?
Yes. The THT500 includes both constant force and constant speed testing modes. In constant force mode, users can set a linear force increment rate from 10 to 200 N/sec. Constant speed mode supports test speeds from 0.01 to 3 mm/sec.
Do you offer a guarantee?
The datasheet does not specify warranty or guarantee terms. Warranty coverage and service agreements may vary depending on your region and distributor. Please contact our sales team for details regarding warranty coverage, service plans, and support options.
